Audi S4 / S5 / A6 / Q7 / SQ5 3.0 TFSI & VW Golf MK5 GTI BYD Engine Walnut Blaster Carbon Cleaning Adapter (Billet Aluminum)

Restore engine performance lost to carbon buildup with this premium billet aluminum walnut blaster carbon cleaning adapter, precision crafted from 6061 aluminum alloy for permanent durability and reliable cleaning operation. Direct injection engines (including all 3.0 TFSI Audi engines and select VW MK5 GTI variants) are notorious for accumulating heavy carbon deposits on the intake valves and ports — because direct injection sprays fuel directly into the combustion chamber rather than over the intake valves, there's no fuel washing action to keep the valves clean. Over time, carbon deposits restrict airflow, reduce engine efficiency, cause misfires, lower fuel economy, and trigger rough running and check engine light symptoms. The walnut blasting procedure (using crushed walnut shell media to mechanically remove carbon deposits) is the standard professional cleaning solution, and this adapter is the critical interface that connects the walnut blaster gun to the cylinder head intake port for clean, contained cleaning operation. Built specifically for the 3.0 TFSI Audi platform and BYD-engine VW Golf applications.

Features:

• Restores engine performance – removes carbon buildup that restricts airflow, reduces efficiency, and causes misfires on direct injection engines
• Premium 6061 aluminum alloy construction – significantly more durable than plastic walnut blaster adapter alternatives, designed for repeated professional use

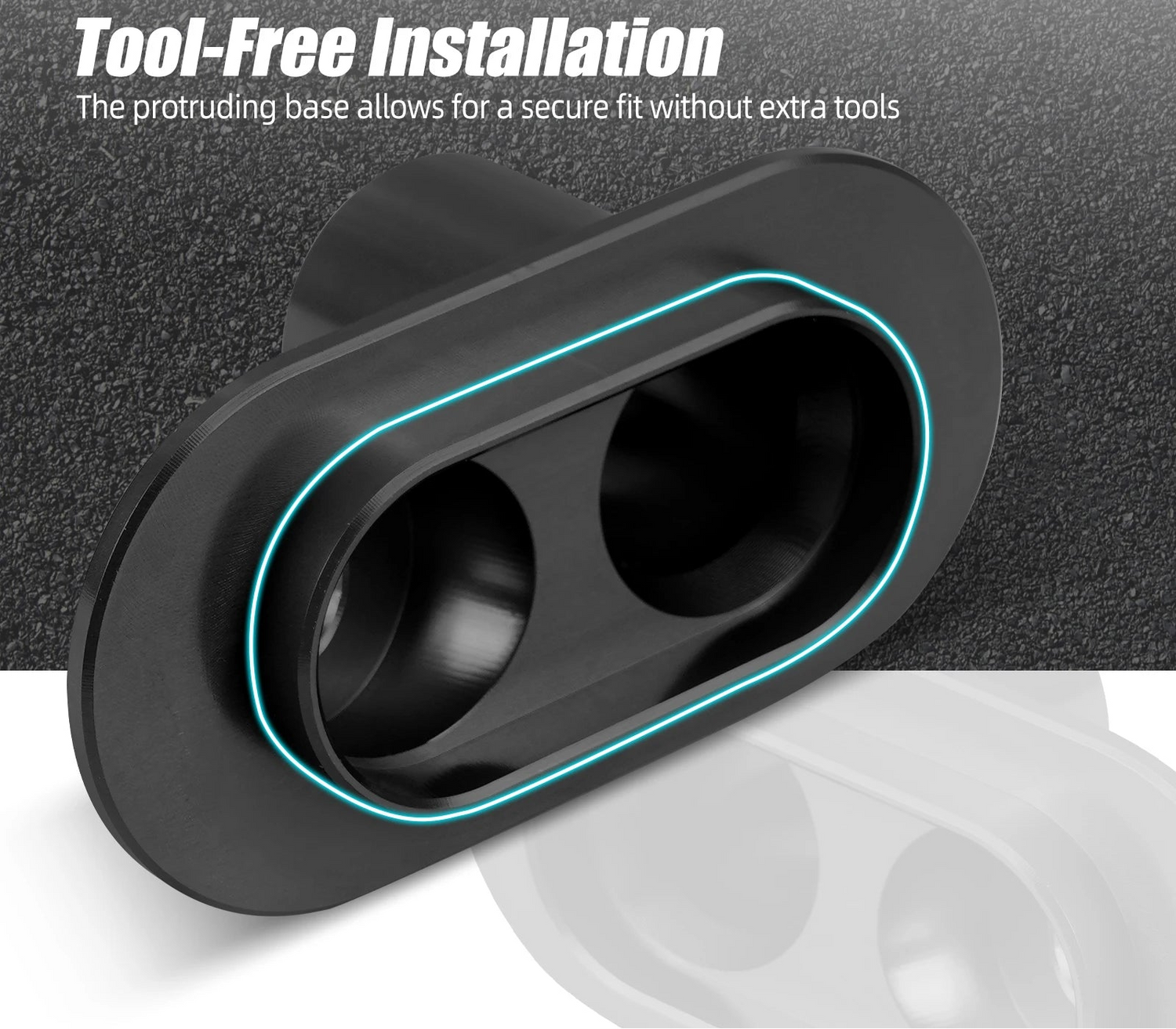

• Tool-free quick installation – protruding base design enables secure fit on the cylinder head intake port without additional clamps or fixtures

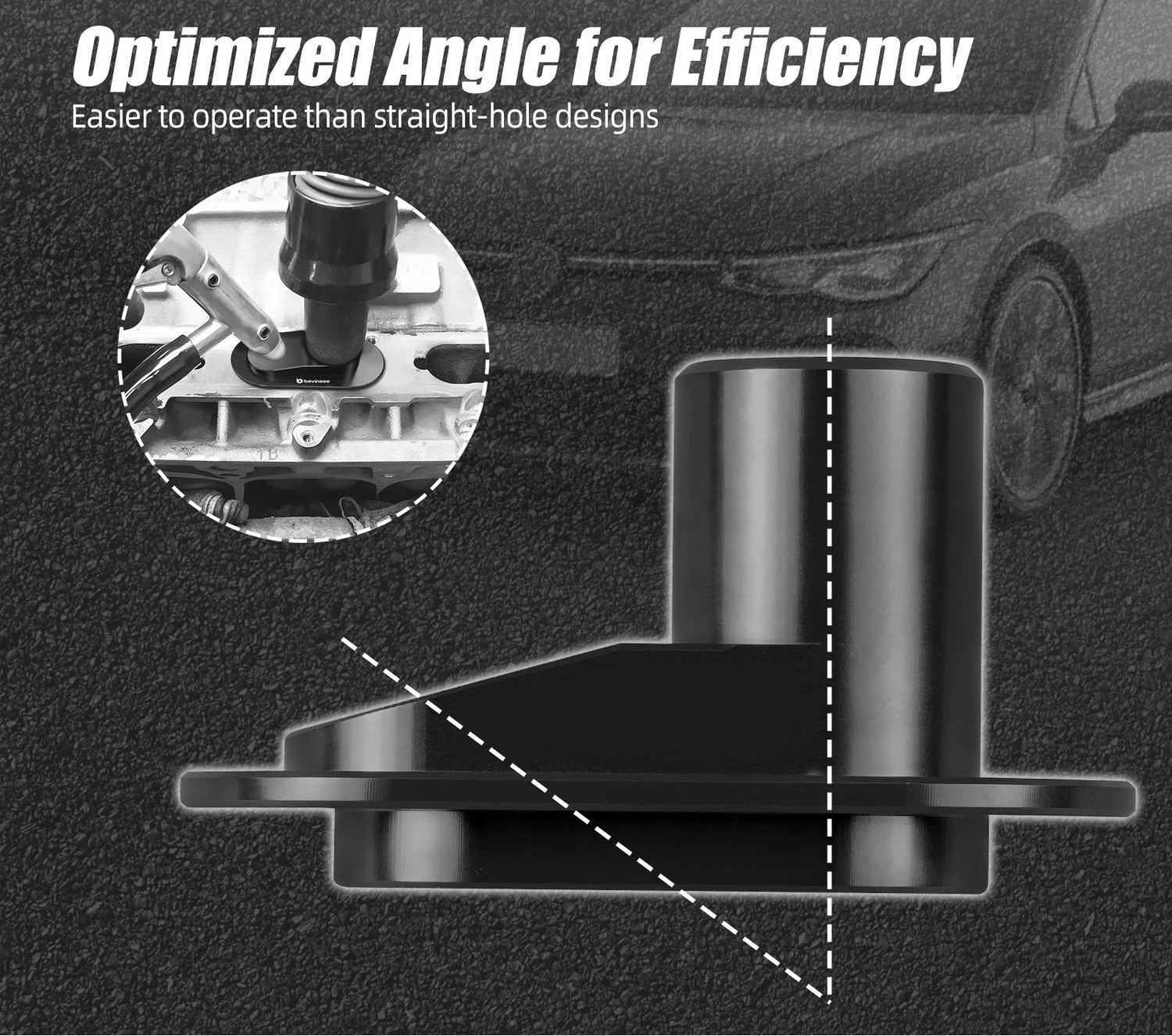

• Optimized angled port design – vacuum port and sandblaster gun inlet are positioned at an angle for easier blaster gun access and better cleaning operation compared to aligned designs
• Direct fitment – engineered specifically for the 3.0 TFSI Audi engine platform and BYD-engine VW Golf applications
• Reusable across multiple cleaning operations – durable construction for repeated use on the same vehicle or across multiple customer vehicles in shop applications

Specifications:

• Condition: 100% Brand New
• Type: Walnut Blaster Carbon Cleaning Adapter
• Material: 6061 Aluminum Alloy
• Construction: Precision Machined
• Port Configuration: Angled (Vacuum + Blaster Gun)
• Quantity: 1 adapter per pack
• Position: Cylinder Head Intake Port (during cleaning service)
• Engine Compatibility: 3.0 TFSI Audi & BYD Engine VW Golf
• Purpose: Direct Injection Carbon Cleaning Tool

Fitment:

• Audi 3.0 TFSI Applications:
• Audi S4 B8 3.0 TFSI (2007 – 2012)
• Audi S5 Cabriolet / Sportback 3.0 TFSI (2010 – 2017)
• Audi A6 C7 3.0 TFSI (around 2012)
• Audi Q7 4L / Early 4M 3.0 TFSI (2006 – 2015)
• Audi SQ5 3.0 TFSI
• Volkswagen BYD Engine Applications:
• VW Golf MK5 GTI Edition 30 (BYD engine code)
• VW Golf MK5 GTI Pirelli (BYD engine code)
• Compatible with the listed 3.0 TFSI Audi engines and BYD-engine VW Golf applications only
• Verify your engine code matches one of the listed applications before ordering

Contents:

• 1x Billet Aluminum Walnut Blaster Carbon Cleaning Adapter

Benefits:

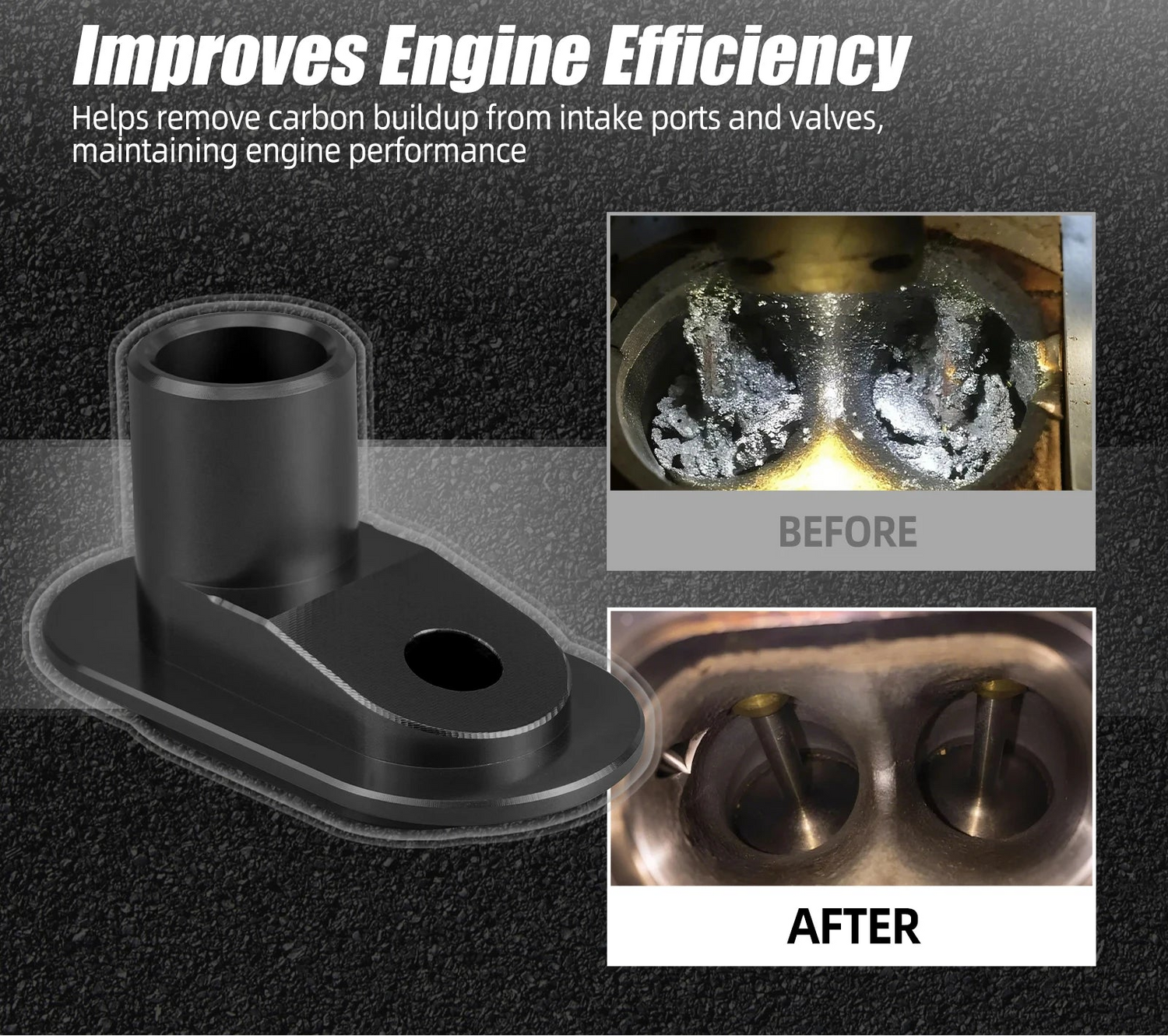

• Restores engine performance lost to carbon buildup – direct injection engines accumulate heavy carbon deposits on intake valves that significantly affect performance, fuel economy, and drivability over time
• Resolves common direct injection symptoms – misfires (P0301-P0306 codes), rough idle, hesitation under acceleration, reduced fuel economy, and rough running cold starts are all commonly traced to intake valve carbon buildup
• Enables professional-grade carbon cleaning service – walnut blasting is the standard professional method for removing intake valve carbon, used by Audi/VW dealers and specialty shops
• Aluminum construction permanently outlasts plastic walnut blaster adapter alternatives – critical for shop use where the adapter sees repeated cleaning service intervals
• Angled port design improves cleaning effectiveness – better access angle for the blaster gun ensures more thorough media coverage of carbon-affected valve and port surfaces
• Significant cost savings compared to dealer carbon cleaning service – professional walnut blasting service typically costs $400-$800 at dealers; performing the service in-house with proper tools recovers the equipment cost in 1-2 services
• Ideal for both DIY enthusiasts and professional shops servicing direct injection engines

Required Additional Equipment:

• Walnut blaster gun: Sandblaster gun designed for crushed walnut shell media – sourced separately
• Walnut shell blasting media: Crushed walnut shell sandblasting media (do NOT use silica or aggressive media which damage valves)
• Air compressor: Capable of sustaining 80-120 PSI for proper blasting operation
• Shop vacuum: Heavy-duty vacuum capable of capturing the walnut shell debris and removed carbon during operation
• Hose adapter: Vacuum hose adapter to connect shop vacuum to the adapter's vacuum port
• Engine intake tools: Required to remove the intake manifold and access intake ports prior to walnut blasting

Installation & Usage Notes:

• Engine code verification required: Confirm your engine is one of the listed 3.0 TFSI Audi variants or BYD-engine VW Golf applications before ordering
• Cylinder cycle requirement: Each cylinder must be at TDC (Top Dead Center) on the compression stroke during cleaning to close the intake valves – otherwise walnut shell media can enter the combustion chamber
• Allow the engine to fully cool before beginning carbon cleaning service to avoid burns and to ensure proper TDC positioning accuracy
• Remove the intake manifold to access the cylinder head intake ports – consult vehicle service documentation for proper intake manifold removal procedure on your specific application
• Position each cylinder at TDC compression before blasting that cylinder's intake port – use a compression check or socket on the crank pulley to rotate the engine

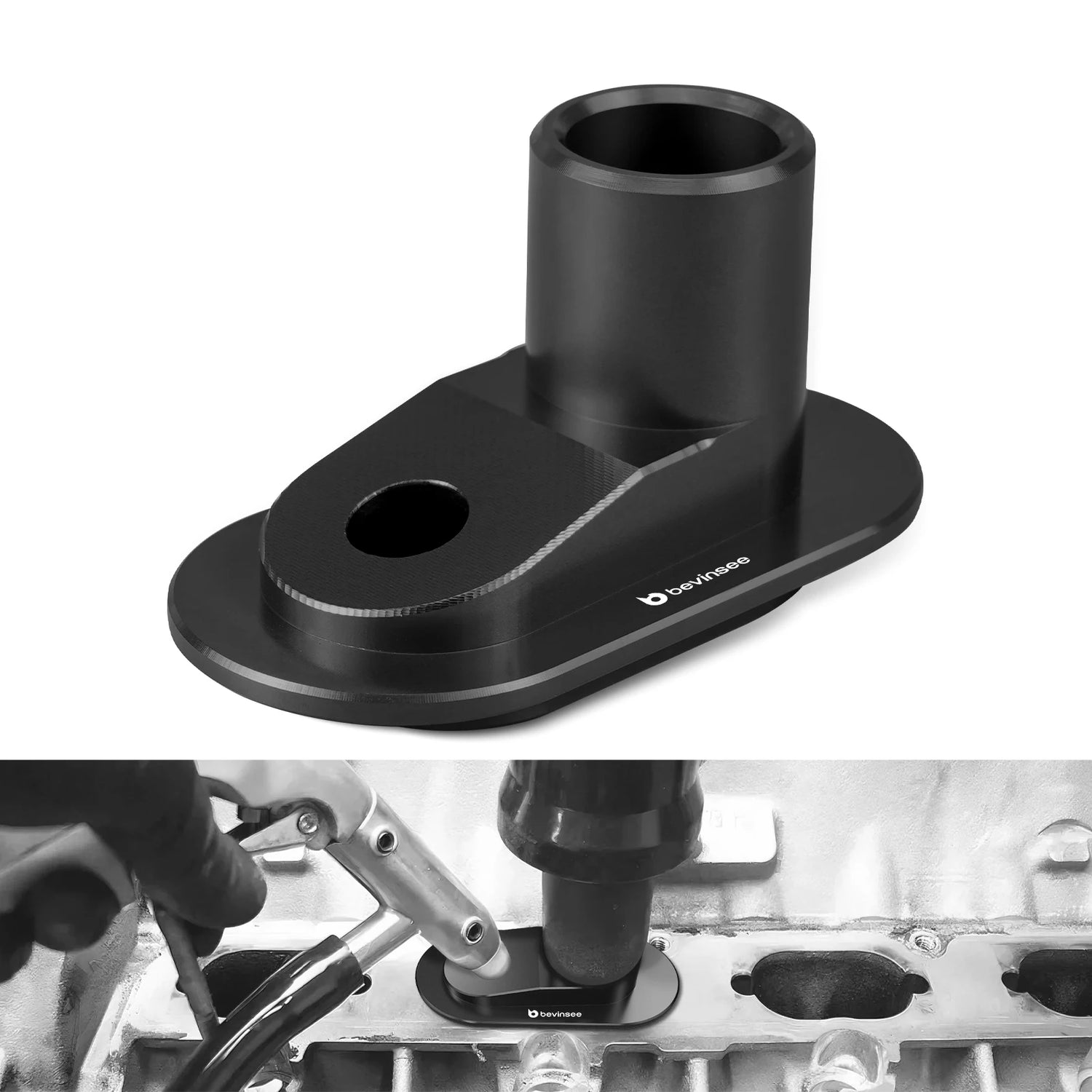

• Position the walnut blaster adapter onto the intake port using the protruding base for secure fitment
• Connect the shop vacuum to the adapter's vacuum port and the walnut blaster gun to the inlet port
• Operate the blaster gun in short bursts while continuously vacuuming – avoid prolonged operation without vacuum suction to prevent media accumulation in the cylinder
• Move the blaster gun to thoroughly cover the back of the intake valves and intake port surfaces – complete cleaning typically requires 5-15 minutes per cylinder depending on carbon severity
• After completing each cylinder, rotate the engine to TDC compression on the next cylinder before continuing
• Thoroughly vacuum any remaining walnut media from the intake ports before reassembly – residual media can cause damage if it enters the combustion chamber
• Inspect intake manifold gaskets, vacuum hoses, and PCV components during reassembly – replace any aged or damaged components
• Professional service strongly recommended – walnut blasting requires careful technique, proper engine positioning, and significant equipment investment. Improper procedure can damage valves, valve seats, or allow media to enter combustion chambers
• If unsure about proper carbon cleaning procedure, consult a qualified technician or authorized service center for proper service
