This universal electric air conditioning and heating system is a fully standalone climate solution designed for vehicles that require cooling or heating without relying on engine operation. Powered directly by a battery or generator, this system continues to operate even when the engine is off—making it ideal for trucks, campers, vans, and off-grid vehicle builds.

With low noise output, high efficiency, and energy-conscious operation, this system delivers reliable comfort while reducing fuel usage and overall operating costs.

Key Advantages

Independent electric compressor operation (engine not required).
Cooling and heating functions operate on separate systems.
Energy-efficient design helps reduce fuel consumption.
Low-noise performance suitable for overnight use.
Flexible installation allows mounting in multiple locations.

Power Requirements

12V system requires generator output above 100A.
24V system requires generator output above 70A.
For engine-off operation, battery capacity must support sustained load.

Evaporator Specifications

Cooling Capacity: Approx. 13,700 BTU/h
Blower Motor Power: 80–100W
Operating Modes: Cooling & Heating
Multi-pass aluminum evaporator coil design
3-speed blower with temperature control

Compressor Specifications

Type: Semi-hermetic horizontal scroll compressor
Operating Voltage: DC 12V
Rated Power: 650W–800W
Refrigeration Capacity: >2200W
Speed Range: 1000–2500 RPM
Noise Level: <70 dB
Integrated overcurrent and thermal protection

LED Status Indicators

1 blink: Standby mode
2 blinks: Overcurrent protection
3 blinks: Locked rotor protection
4 blinks: Undervoltage protection
6 blinks: Fan fault
7 blinks: Motor phase issue
8 blinks: Overheat protection
9 blinks: Pressure protection

Condenser (Outside Unit)

Power Consumption: 120W
Compact external mounting design

Important Notes

Do not operate the compressor without refrigerant installed.
Ensure all control boards are securely mounted before use.
Professional installation is strongly recommended.

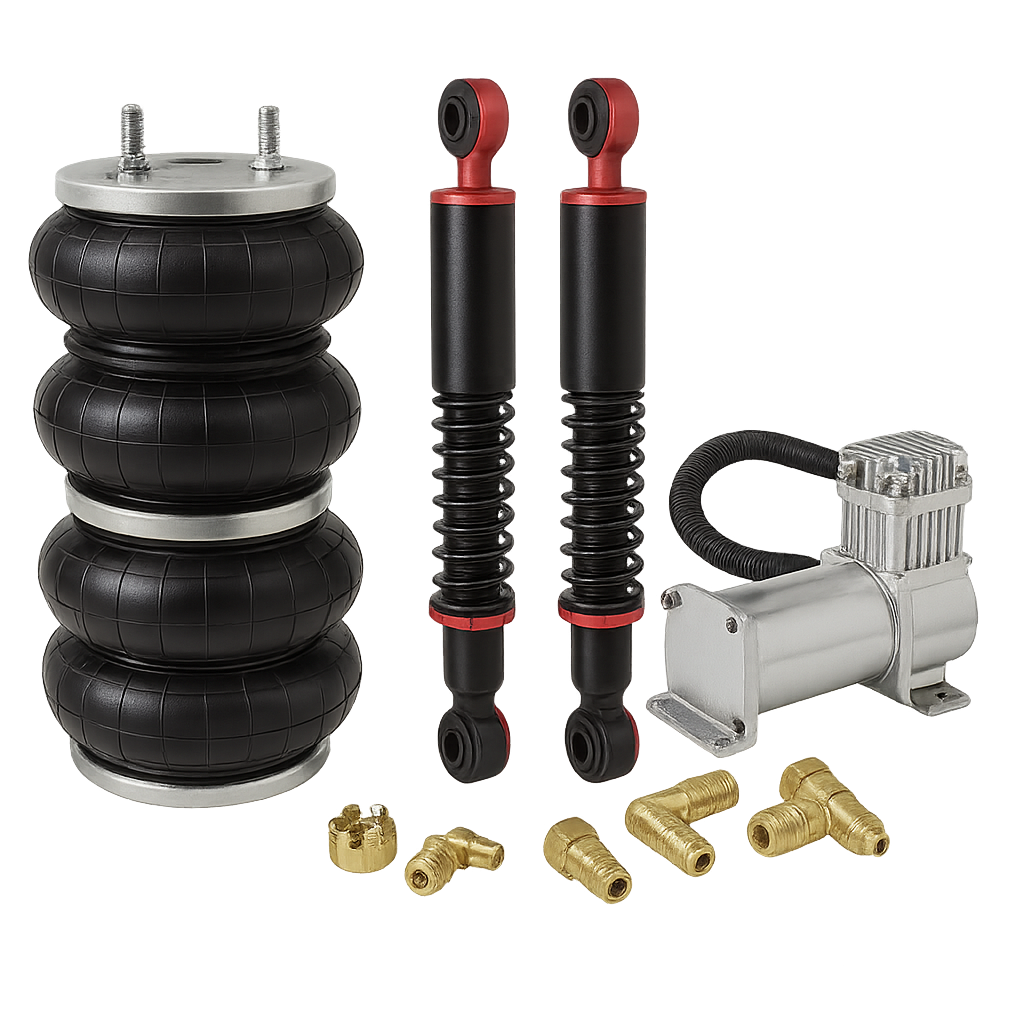

Air Suspension Kits Build Parts
